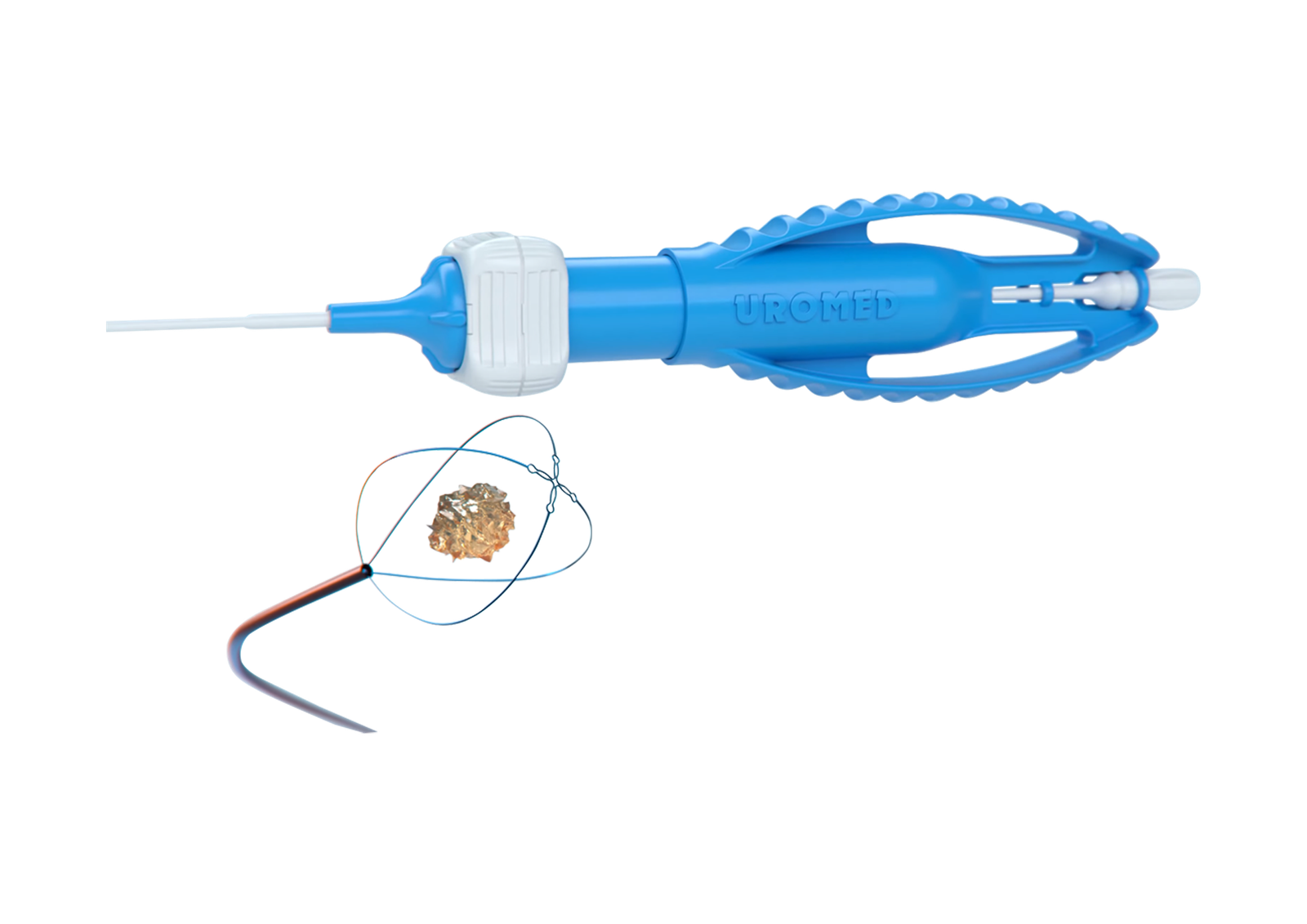

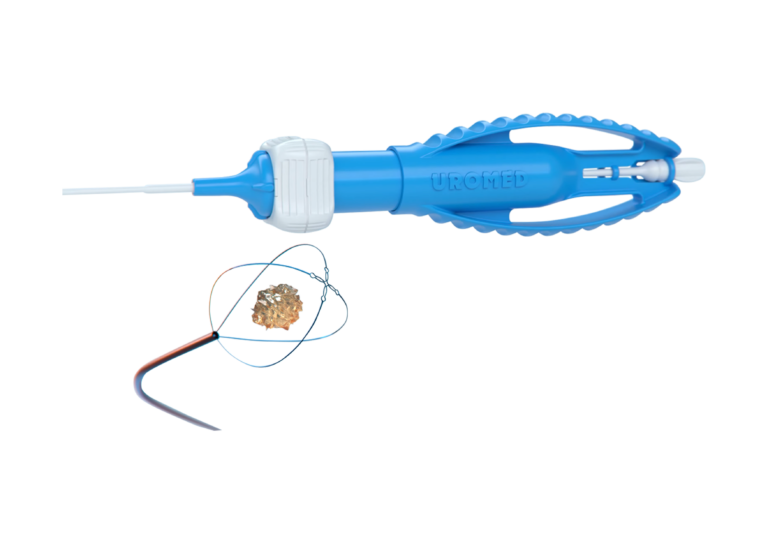

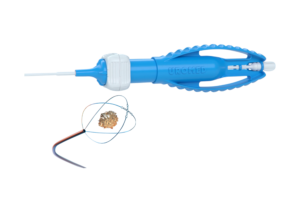

UROMED STONIZER® ROTAR360 ~ Stone Retrieval Basket
Innovative. Intuitive. Efficient.
The new UROMED STONIZER® ROTAR360 Stone Retrieval Basket with patented magnetic technology has been developed for the urological removal of stones from the kidneys during ureterorenoscopy.
The retrieval of kidney stones can be a challenge – for the physicians and likewise for the patients concerned. Our aim at UROMED is to make stone retrieval even easier and more effcient.
To achieve this goal, we have developed the new UROMED STONIZER ROTAR360 Stone Retrieval Basket, a technical innovation that sets new standards with its patented magnet technology and ergonomic design.
Thanks to the one-handed operation of the magnetic 4D thumb slider, the opening, closing and rotation of the stone retrieval basket can be controlled even more precisely in a single movement. The 360° continuous rotation also makes it easier to mobilise and retrieve the stones.
Eight high-quality neodymium magnets enable precise control of the basket, with the magnets automatically decoupling in the event of excessive tensile forces. This ensures the function of the basket and guarantees controlled handling.
Convenient operation and universal fit
Handle
- ergonomically shaped and profiled – fits securely in the hand
- one-handed operation for left- and right-handers
- optimised handle length – also suitable for small hands
- lightweight construction
Magnetic 4D thumb slider
- combines opening, closing and rotation in a single movement
- 1:1 rotation behaviour – movement directly transferred to the basket
- stones are easily mobilised by 360° continuous rotation of the basket
- ergonomically shaped for controlled operation
Strain relief through magnet decoupling
- safeguards the function of the basket under a high degree of strain
- protects the ureteral access sheath
- protects the fURS
Insertion aid
- integrated in the handle for optimum handling
- assists insertion into commonly used ureterorenoscopes
- long, narrow tip for firm positioning in the ureterorenoscope
- funnel has a wide opening for easy insertion of the stone retrieval basket
- wing design for safe storage on the instrument table
Tipless, straight 4-wire basket made of nitinol
Precision thanks to laser technology
- basket is cut from one piece
- improved visibility with commercially available ureterorenoscopes
- basket and shaft are firmly connected
Shaft
- kink-resistant and flexible
- small shaft diameter increases flushing flow in the working channel
- very precise rotation – 270° bendable shaft enables accessibility of all renal calyx groups
Nitinol pull wire
- optimum gliding properties due to PTFE coating
Nitinol
- optimal radial force
- high durability and shape stability
Flat wire construction
- effective grasping
- reliable fixation
- secure hold
With the new UROMED STONIZER® ROTAR360 Stone Retrieval Basket, you have everything effectively under control when retrieving kidney stones – for the benefit of your patients!
