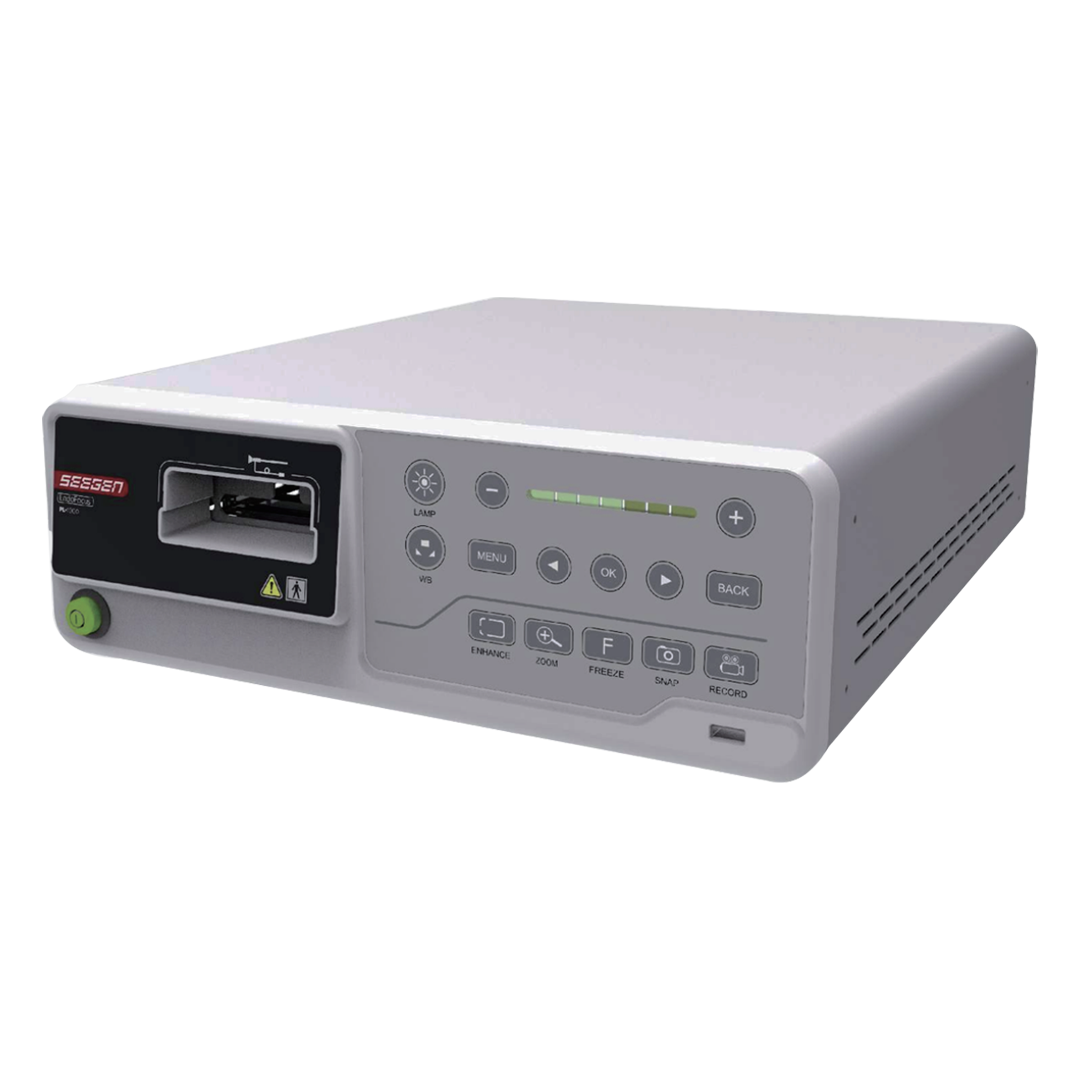

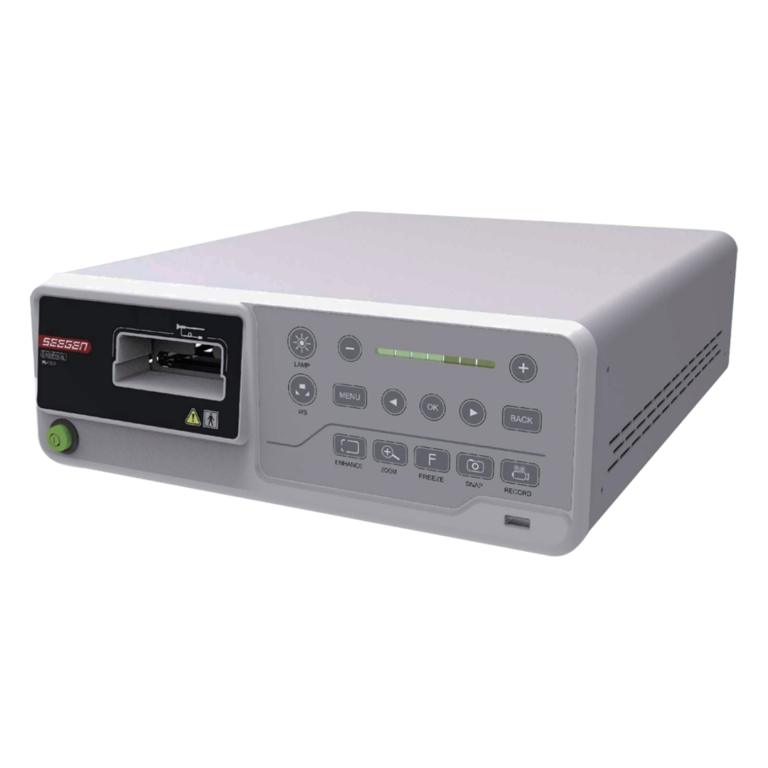

The re-use image processor is intended use in image solution for disposable ureteroscope, cystoscope and choledochoscope. It is supplying steady image solution and working with built-in light source, for which will keep the scope procedure safe and clear. The image processor is fully used re-use scope image solution for serving with disposable scope procedure, and it will help to increase the procedure efficiency and positive result.

Power:
Voltage 100-240 VAC
Frequency 50/60 Hz
Rated input 45 VA

Illumination:
Lamp 2W LED
Lamp life 30.000 hrs
Color temperature 3.000K-7.000K

Functions:
White balance, Luminance control (=-),
Sharpness(0,1,2), Zoom(0,1,2)
Freeze, Snap, Record, USB storage

Output:
DVI*1, S-Video*1, CVBS*1
USB 2.0 (FAT32; Max:128Gb)
350mm(W) * 130mm(H) * 425mm(D)
8kg
